Key Clamp Buggy » 08

*

has – Connections Kee Klamp® 10-6
*

B – Rings of reinforcement of tightening
*

5 – Arm of fork
*

6 – Pedal

Bore an end of each arm of fork (tubes n°5) to the diameter 20 mm for the passage of the front wheel axle.

Place 2 connections Kee Klamp® 10-6 at the other end of the arms of fork with rings of reinforcement inside.

Place 2 other connections Kee Klamp® 10-6 on the arms of fork (to approximately 5 cm under the first), them also with internal rings of reinforcement, and tighten. Position the pedals (tubes n°6 + reinforcements) in the connections, tighten.

*

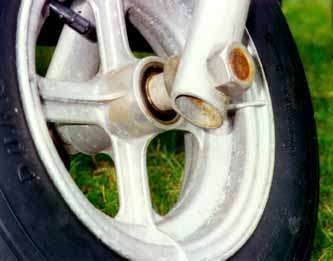

Assembly of the nose gear wheel
Assemble the wheel on a piece of threaded rod (Ø 20 mm) a minimal length of 210 mm, then thread each side and in this order:

– a 20 mm length piece of the tube dural or stainless of 27 X 21; these side spacers come to be pressed on the bearings of the wheel, to fix it in the center of the fork.

– a disc stainless Ø 20 mm

– an arm of fork by its holes of 20 mm

– a nut stainless Ø 20 mm

Very extremely tighten these two nuts by maintaining the arms of fork parallel, until ovalizing the arm of fork slightly (this will prevent inopportune desserages).

*
