Key Clamp Buggy » 05

Components,
*

– 3 complete wheels alloy ALROC of reference RPA 145 31 (this model is equipped with bearings 6004 2RS of dimensions 20x42x12)

For the frame and the fork:

*

– 5 connections Kee Klamp® 10-6 (assembly of the fork)
*

– 5 connections Kee Klamp® 45-6 (assembly of the frame)
*

– not to forget to buy one or two special Allen wrench (reference n° 99 of the catalogue Kee Klamp®), of Anglo-Saxon size: the metric Allen wrenches that one finds on our premises are too small or too grosses…
*

– 5 m of tube dural AU4G 35 X 31 mm (frame, tallies and fork)
*

– 0,60 m of tube dural AU4G 35 X25 mm (steering column and frame)
*

– 0,50 m of tube dural AU4G 30 X 26 mm (rings of reinforcements of tightening)

For base:

*

– a chair of monocoque community out of polypropylene (recovery)
*

– 1,20 m of tube PVC of plumbing Ø 32 mm (braces balustrades)
*

– 1 m of very dense foam tube of protection (foams kind of bar of roof for the bearing of board with veil)
*

– 4 bolts, nuts and discs stainless Ø 8 mm for fixing of the balustrades.
*

– to envisage the clothes industry of covers for the foam of these balustrades.

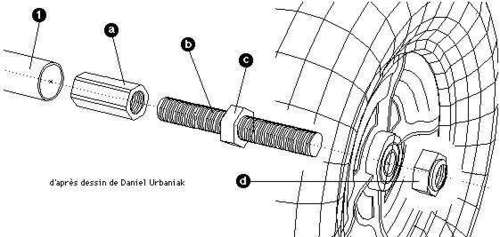

For the assembly of the wheels AR:

*

– 2 times 180 mm of threaded rod hard steel (42CD4) Ø 20 mm (axes)
*

– 2 hexagonal spacers threaded out of steel Ø 20 mm (parts to be filed)
*

– 2 nuts stainless Ø 20 mm (being used as counter-nut)
*

– 2 nylstop self-locking nuts stainless Ø 20 mm

For the assembly of wheel AV:

*

– 210 mm of threaded rod hard steel (42CD4) Ø 20 mm (axis)
*

– 10 cm of tube dural AU4G or stainless 27 X 21 mm (spacers G and D of the wheel)
*

– 2 nuts stainless Ø 20 mm
*

– 2 discs stainless Ø 20 mm

For the assembly of the steering column:

*

– 160 mm of threaded rod stainless Ø 16 mm
*

– 1 hexagonal spacer threaded out of steel Ø 16 (part to be filed)
*

– 1 nut stainless Ø 16 mm
*

– 2 nylstop self-locking nuts stainless Ø 16 mm
*

– 10 cm of plastic pipe armed 23 X 15 mm
